The 9018-B9 is a specialized electrode designed for welding Modified 9Cr-1Mo steels (commonly known as P91/T91). These steels are used in extreme environments where high temperature and high pressure are constant factors. 1. Key Features • Creep Resistance: Modified with Niobium (Nb) and Vanadium (V) to provide excellent long-term creep rupture strength. • Low Hydrogen: Designed to minimize the risk of hydrogen-induced cracking. • All-Position Welding: Suitable for use in all positions (Flat, Horizontal, Vertical-up, and Overhead). • Stability: Provides a stable arc with low spatter and easy slag removal. 2. Typical Applications These electrodes are the industry standard for critical infrastructure, including: • Power Plants: Main steam piping, headers, and turbine casings. • Oil & Gas: Refinery units, coal liquefaction, and gasification plants. • Boilers: High-temperature superheater tubes and heat exchangers. • Industrial Service: Any application operating at temperatures up to 600°C. 3. Technical Specifications Property Specification / Value AWS Classification AWS A5.5 E9018-B91 Coating Type Basic, Low Hydrogen (Potassium, Iron Powder) Current / Polarity DC+ (DCEP) or AC 4. Chemical Composition (Weld Metal %) The performance of this electrode comes from its precise alloy mix: • Chromium (Cr): $8.0 text{ - } 10.5%$ • Molybdenum (Mo): $0.85 text{ - } 1.10%$ • Vanadium (V): $0.15 text{ - } 0.30%$ • Niobium (Nb): $0.02 text{ - } 0.10%$ • Nitrogen (N): $0.02 text{ - } 0.07%$ ________________________________________ 5. Important Welding Guidelines Note: Because P91/T91 steels are sensitive to cooling rates, the following steps are mandatory for a successful weld: • Preheating: Maintain a preheat and interpass temperature between 200°C and 300°C. • Re-drying: Electrodes should be baked at 350°C - 400°C for 1–2 hours before use to ensure they are moisture-free. • PWHT: Post-Weld Heat Treatment is typically required to ensure the mechanical integrity of the joint.

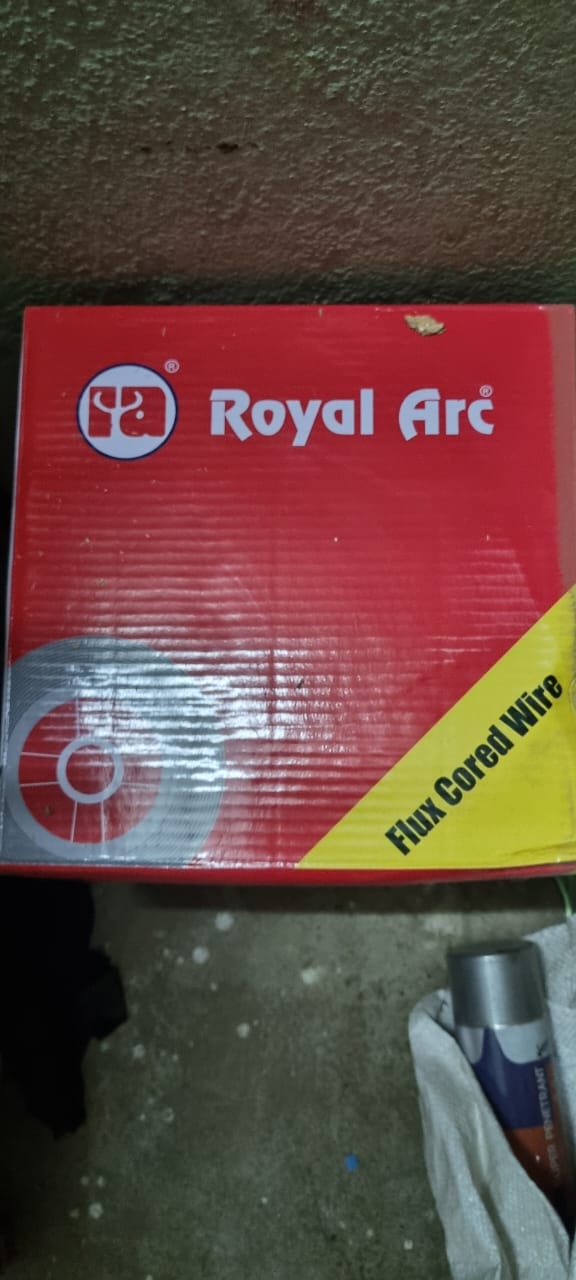

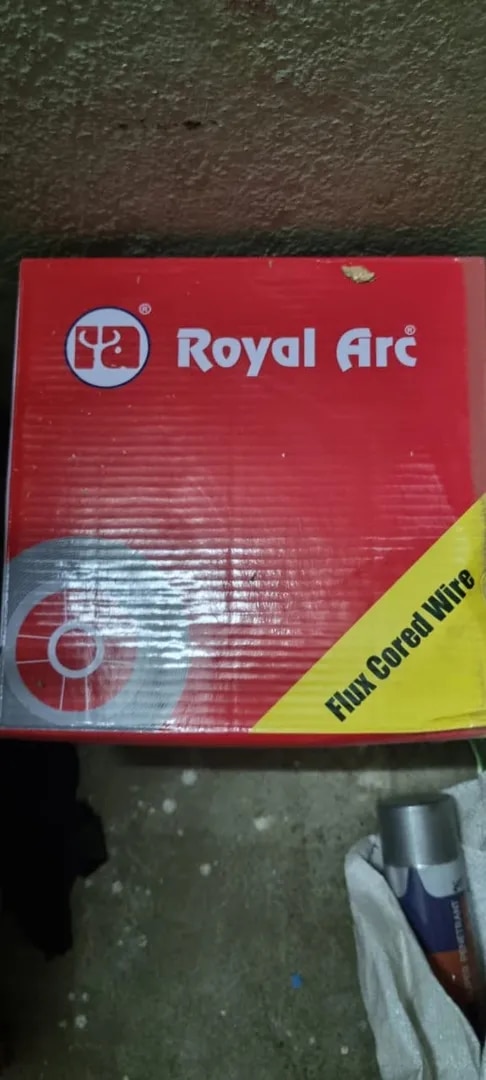

The Royal Arc 71T-1 is a high-quality, rutile-type Flux-Cored Arc Welding (FCAW) wire designed for all-position welding of mild and medium-tensile steels. It is one of the most widely used wires in the industry due to its versatility and ease of use. Below is a detailed breakdown of its characteristics, applications, and technical specifications. Core Characteristics The “71T-1” classification tells us several things: the 7 indicates a minimum tensile strength of 70,000 psi, the 1 means it can be used in all positions (flat, horizontal, vertical, and overhead), and the T-1 refers to the flux type (rutile) and its usability characteristics. All-Position Capability: The slag is designed to freeze quickly, which helps support the molten weld pool when welding vertically up or overhead. Arc Performance: It provides a very stable, smooth spray-like arc with minimal spatter. Slag Removal: The slag is generally self-peeling or very easy to remove, leaving a clean, bright weld bead with a smooth ripple profile. Shielding Gas: This wire requires an external shielding gas, typically either 100% CO 2 ​ or a 75−80% Argon/Balance CO 2 ​ mixture. Technical Specifications Feature Details AWS Classification AWS A5.20 E71T-1C / E71T-1M Polarity DC+ (DCEP - Electrode Positive) Shielding Gas 100% CO 2 ​ or Argon/CO 2 ​ Mix Tensile Strength ≈480−600 MPa Yield Strength ≈400 MPa min. Elongation 22%−30% Export to Sheets Common Applications Because of its high deposition rate and efficiency compared to traditional stick (SMAW) welding, the Royal Arc 71T-1 is a “workhorse” in the following sectors: Shipbuilding and Marine Repairs: Excellent for long seams and out-of-position hull work. Structural Steel Fabrication: Used in building frames, bridges, and trusses. General Manufacturing: Ideal for heavy machinery, earth-moving equipment, and pressure vessels. Storage Tanks: Highly effective for circumferential and longitudinal welds on large tanks. Best Practices for Use Wire Stick-Out: Maintain a “Contact Tip to Work Distance” (CTWD) of roughly 15–20mm. A stick-out that is too short can cause bird-nesting or tip fusion. Storage: Like all flux-cored wires, it should be stored in a dry environment to prevent moisture pickup in the flux, which can lead to hydrogen-induced cracking or porosity. Ventilation: FCAW produces more smoke/fume than MIG welding; ensure proper extraction or use in well-ventilated areas.

The Rasi EM12K is a high-performance, fluoride-basic type agglomerated flux designed specifically for high-quality welding of medium and high-tensile steels. When paired with EM12K wire, it produces a weld metal that offers excellent radiographic soundness and mechanical properties, making it the preferred choice for industrial applications where safety and durability are paramount.
